Additional settings / "Font" tab ([Setup] menu)

VTWindow Font

Specify VTWin font.

Select Button

Opens font dialog to select font to use.
Fonts displayed in the font dialog list can be modified using the checkboxes below.

List proportional fonts in font dialog

Proportional fonts are displayed in font list in font dialog. If the currently font is a proportional font, this checkbox is automatically checked and cannot be changed.
This checkbox changes behavior of font dialog and is not saved in settings file.

List hidden fonts in font dialog

Displays fonts set as hidden by the OS in font list in font dialog.
If the currently font is a hidden font, this checkbox is automatically checked and cannot be changed.
This checkbox changes behavior of font dialog and is not saved in settings file.

This feature to hide certain fonts in font dialog is available on Windows 7 and later.

Use the link below to open the Fonts folder and view font visibility

Click Font Folder link to open font folder where you can preview fonts and show/hide settings.

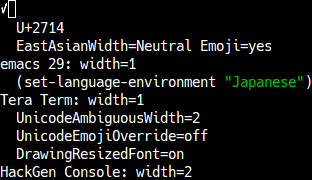

Drawing resized font to fit cell width

Character width to be displayed, such as "©"(U+00A9), can be either 1 or 2cell, and depending on the font design (font file), the font width can also be either 1 or 2cell.
Depending on the language and font, font width may not match width to display.
When the text is drawn to fit the cell width, looks natural, but drawing may be slower and the font design may differ from the font developer's intent.
And refer to Ambiguous Characters width, East_Asian_Width and width (cells) for character width assumed by Tera Term connecting destination.

ON

When the width to be displayed and the width of the font to be drawn are different, text is drawn with resizing font to the cell width.

OFF

Displays the design of the font file as it is.

• When Tera Term displays as 2Cell and the font design is 1Cell, 1Cell character and 1Cell space are drawn.
• When Tera Term displays as 1Cell and the font design is 2Cell, The left half of 2Cell is drawn.

API for drawing

Unicode API

Use Unicode Draw API.
Normally used.

ANSI API

Use ANSI(not Unicode) Draw API.
Codepage needs to convert Unicode to ANSI character. Some fonts need to use ANSI Draw API.
Normally not used.

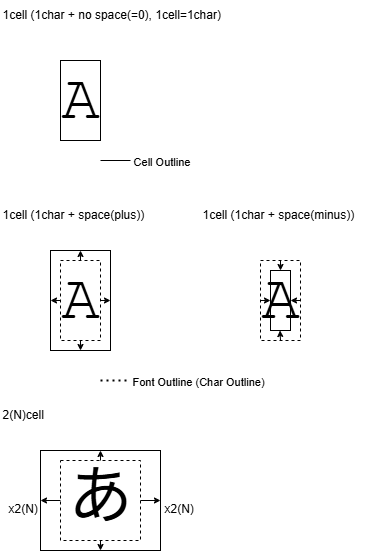

character space

see Space between characters (lines).

Note:

• "Tera Special" font, which is included in the distribution package, is used for displaying DEC Special Graphics. It can not be selected in this dialog box.
• The font quality can be selected by using the Font quality on the Visual tab of Additional settings dialog.
